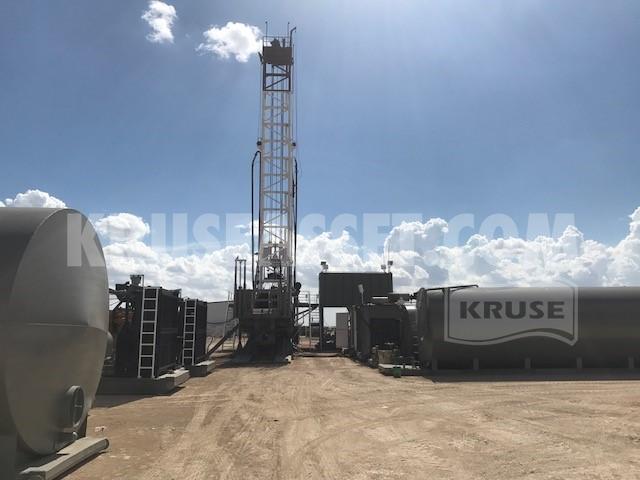

MD COWAN - SUPER SINGLE MD525 RIG FOR SALE
New Low Price $1,750,000
Email for more info1600HP Pumps
90-Day Warranty Parts (USA)
Just Refurbished & Ready to Drill
Stacked, Located in Odessa, TX
NOW ACCEPTING OFFERS
Call to Inspect and Buy Today!!!
Call NOW! (800) 952-1973
Listing Details

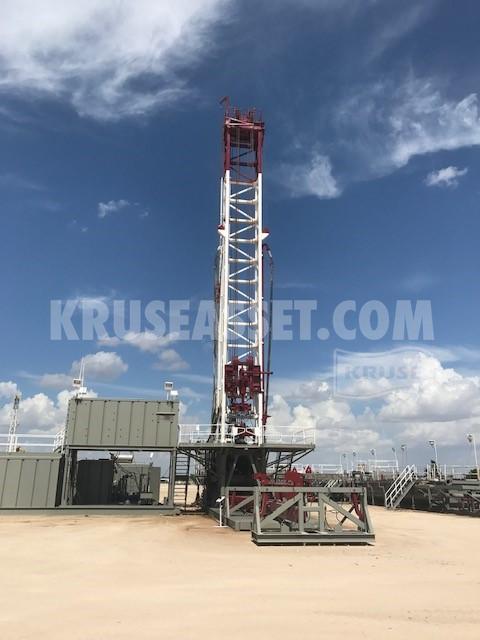

| DERRICK AND SUBSTRUCTURE | |
| DERRICK/MAST | YES – API 4G Monogrammed |
| Make/type: | INTERNATIONAL DERRICK SERVICE (IDS) – API certified |
| With no set back: | |
| Height: | 72' |
| Dimensions of base: | 8'1" WIDE X 6' DEEP |
| Dimensions of crown: | 8'1" X 6' DEEP |
| Gross nominal capacity: | 825,000 GNC |
| Static hook load: | 550,000 SHL |
| Minimum number of lines: | 8 |
| Ladders: | YES |
| Platform for crown sheave access: | YES |
| Light system explosion proof: | YES |
| MAKE-UP/BREAK-OUT TOOL | 1-BLOHM & VOSS Make-up/Break-out wrench WITH UP TO 65,000 FT-LBS. M/U torque; 85,000 FT-LBS B/O torque |
| SUBSTRUCTURE | YES |
| Make/type: | IDS |
| Slip Bowl height (above Ground level): | 14' 8" |
| Length: | 48' |
| Width: | 12' |
| Slip Bowl beam capacity (total): | 250 TON |
| Clear height below Slip Bowl beams (to Ground level): | 10'6" |

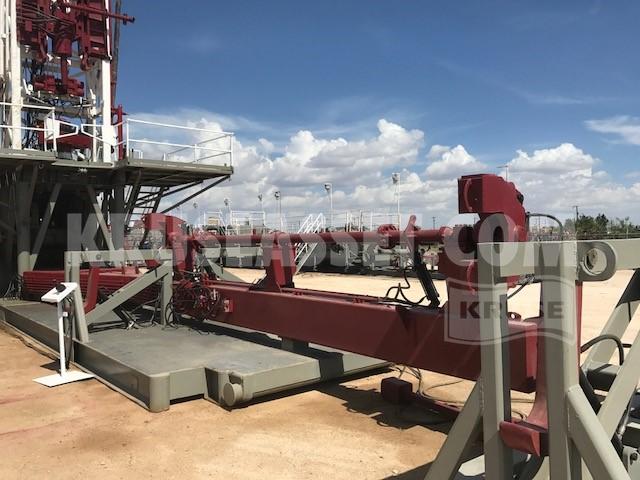

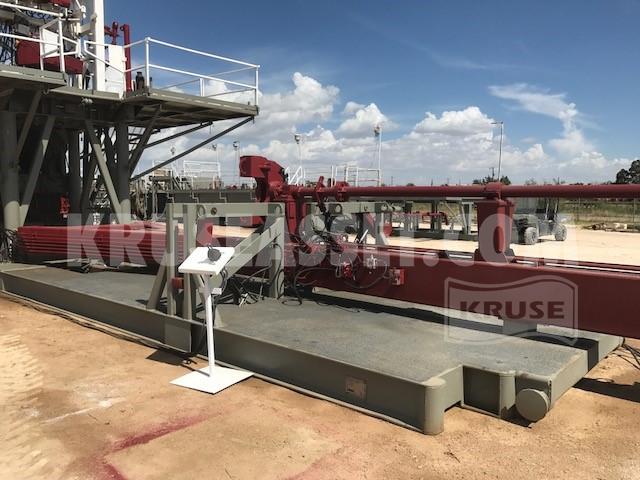

| Hydraulic Pipe Arm | 1- IDS HYDRAULIC PIPE ARM FOR HANDLING 3-1/2" TO 5" RANGE II or III DRILL PIPE, 6-1/4" TO 8-1/4" DRILL COLLARS & RANGE III CASING W/HYDRAULIC ARM FOR HANDLING PIPE FROM PIPE RACK TO GRABBERS |
| DRAWWORKS AND ASSOCIATED EQUIPMENT | |
| Drawworks | |
| Make/type: | RIG TECH RT-400B |

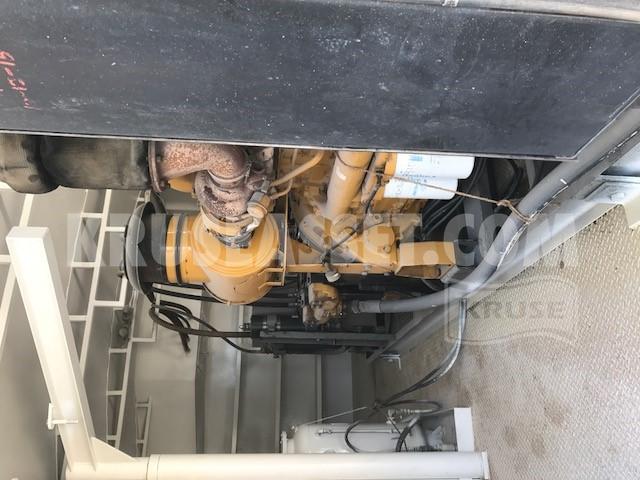

| Engine make/type: | CAT C-15 W/ALISON 6-SPD. TRAN. |
| Rated input power: | 540 HP |
| Drum size (diameter x length): | 21" X 25-1/8" |
| Drum type (grooved/smooth): | GROOVED (Lebus) |
| For drill line size: | 1 1/4" |
| Brake type (disk/drum): | DRUM |
| Brake band size: | 42” round x 10” wide |
| Maximum Hook load - 8 lines: | 435,000 LBS |
| Crown block safety devices: | YES |
| Make/type: | RT-400 CROWN PROTECTOR W/BRAKE ASSIST |
| Auxiliary brake: | EATON WCB 424 |
| Independent fresh water cooling system for draw works and air brake: | EATON-AIRFLEX MODEL # RT- BWCS-101 400,000# BRAKING |
| Wire line Unit | YES |
| Make/model: | OIL WORKS OWI-1000 |
| Wire length (nominal): | 12,000' |
| Wire size: | .092 IN |
| Max working load: | 835 LBS |
| Safe working load: | 800 LBS |
| Depth counter: | YES |
| Pull Indicator | NO |
| DERRICK HOISTING EQUIPMENT | |
| Crown Block | |
| Make/type: | IDS |
| Rated Capacity: | 550,000 SHL |
| No. of sheaves: | 8--7 vertical/1horizontal |
| Sheave diameter: | 6-36”; 1-30"; 1-24” |
| Sheave grooved for line size: | 1-1/4" |

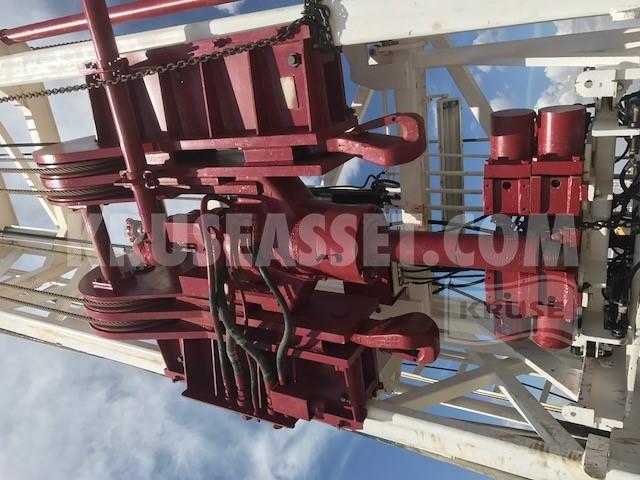

| Traveling Block | |
| Make/type: | MD COWAN INTEGRATED 4-SHEAVE SPLIT BLOCK |
| Rated Capacity: | 250 TON |
| No. of sheaves: | 4 |
| sheave diameter: | 36" |
| Sheave grooved for line size: | 1-1/4" |
| Drilling Line | YES |
| Diameter: | 1-1/4" |
| Construction: | BETHLEHEM STEEL AMERICAN RRL/IWRC/EIPS DOMESTIC or equivalent |
| Length (original): | 2,500' |
| Drilling line reel: | YES |
| Drum cover: | NO |
| Drilling line drum power driven: | Optional |
| Roller guides: | NO |
| Dead Line Anchor | |
| Make/type: | HERCULES HA-119T |
| Weight sensor: | 60,000# |
| SLIP BOWL SYSTEM - NON-ROTATING | |
| Make/type: | 1 EA – Varco/ MSPC |
| Bowl Opening: | 2-3/8” / 13- 3/8” |
| API Bowls 1, 2, 3 | |

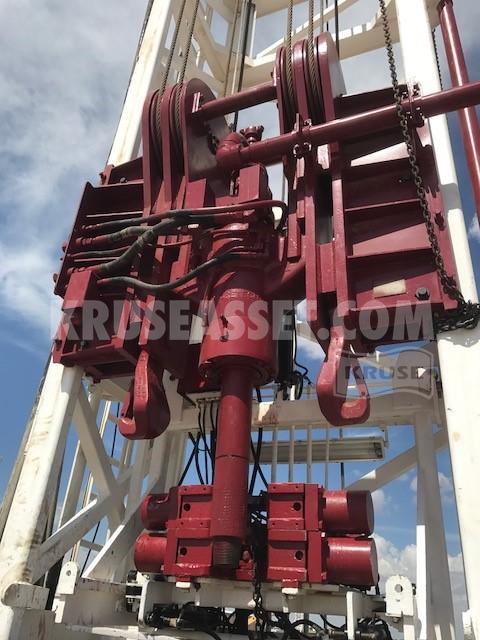

| Top Drive/Power Swivel | |
| Make: | VENTURETECH |
| Model: | XK-250 |
| Type (electric/hydraulic): | HYDRAULIC - SUNSTRAND HYDRAULIC PUMP POWERED BY CATERPILLAR C-18 DIESEL ENGINE & HYDRAULIC SYSTEM |
| Rated capacity: | 250T |
| Working pressure: | 5,000 PSI |
| Maximum continuous torque @ 120 rpm: | 22,000 FT-LBS |
| Maximum continuous rotary speed: | 160 RPM |
| Cooling system type: | N/A |
| Upper inside BOP: | 2-3/4" INSIDE |
| Mandrel: | 4-1/2" I.F. |
| 100 RPM Dynamic load rating: | 140 Tons |
| Working pressure: | 5,000 PSI |
| Output power: | 24,000 ft-lbs |
| POWER SUPPLY SYSTEMS | |

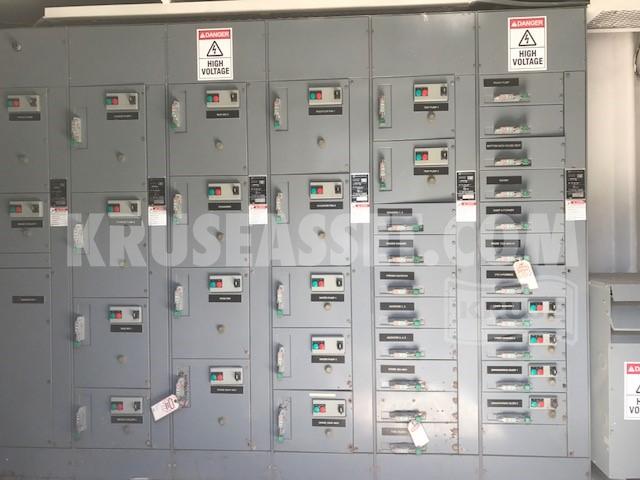

| RIG POWER PLANT | GENERATOR HOUSE: 10' WIDE BY 51' LONG W/ NEW SQUARE D MCC or equivalent |

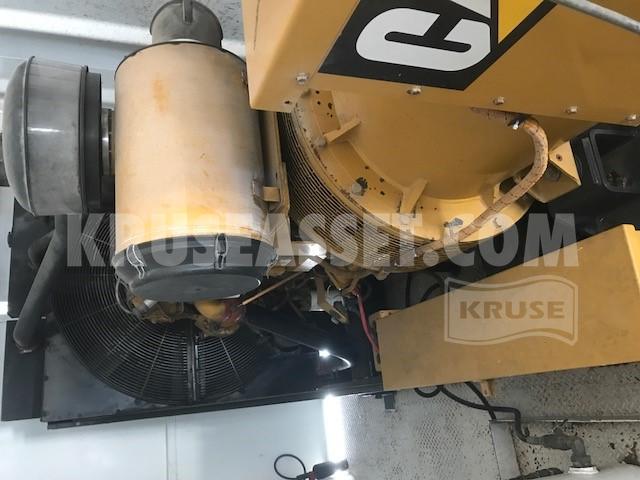

| Diesel Engine/Generator Sets | (includes camp transformer modular) |
| Quantity: | 2 |
| Make/type: | CATERPILLAR / C-15 |
| Maximum continuous power: | 540 HP |
| At rotation speed of: | CONSTANT 1200RPM |
| Equipped with spark arrestors: | YES |
| Mufflers installed: | YES – 8” FLANGES |

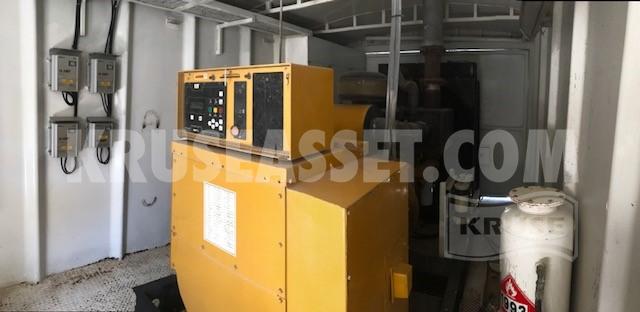

| AC - Generator | |
| Quantity: | 2 |
| Make/type: | CATERPILLAR/455 KW |
| At rotation speed of: | CONSTANT 1200RPM |
| Output volts: | 60 Hz 480 VOLTS |

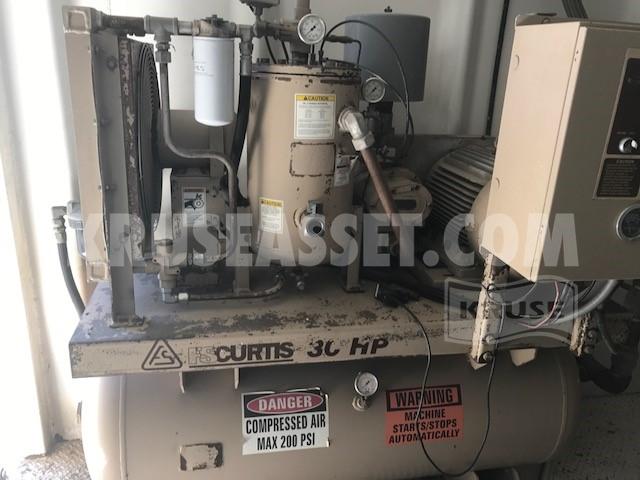

| Air Compressors - Medium Pressure (rig air): | |
| Quantity: | 1 each |
| Make: | CURTIS |
| Model: | RS30F |
| Rated Capacity: | 102 CFM |
| Working pressure: | 175 PSI |
| Prime mover (electric/diesel): | ELECTRIC |
| Continuous power: | 30 HP |
| Air Compressor – COLD START | CUSTOMER PROVIDED |
| AIR RECEIVERS | NOV – 1 each |
| Volume (total): | 600 cu. Ft. |
| Maximum Pressure | 175 PSI |
| Location: | Unit Trailer |

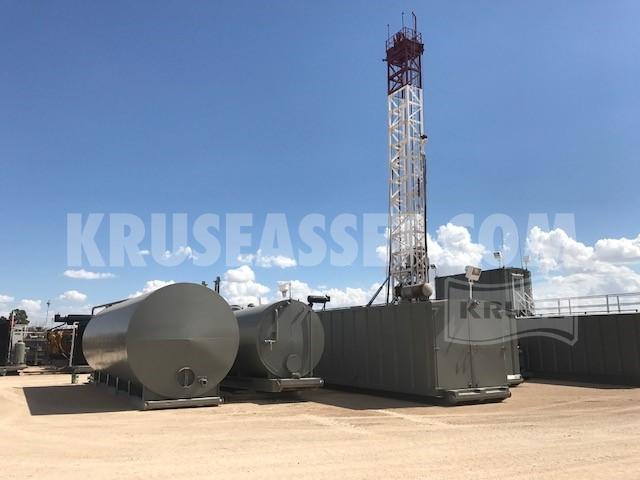

| FUEL TANK | |
| Standard Cylindrical Tank/ Optional Rectangular | MDC FABRICATED |
| Cylindrical 8' diameter | 265 BBL. (10,000 GAL) |
| WELL CONTROL | |
| All appropriate components H2S rated | No |
| RAM TYPE PREVENTERS | YES |
| Quantity: | 1 |
| Make/model: | CPTDC |
| Type (single / double / triple): | DOUBLE |
| Size: | 11 IN |
| Working pressure: | 5,000 PSI |
| Ram locks: | YES |
| Type (manual/hydraulic): | MANUAL |
| Side outlets: | 4 |
| Size: | 4" |
| WP: | 5,000 PSI |
| Bottom connection: | 11" x 5M |
| Top connection: | 11" x 5M |
| AVAILABLE RAMS (INSTALLED & SPARE) | |
| Quantity / type / size: | BLIND (1 set) |
| Quantity / type / size: | PIPE: 4-1/2" (1 set); 5-1/2” (1 set) |
| ANNULAR PREVENTER | Yes |
| Quantity: | 1 |
| Make/type: | CP International / Shaffer - type |
| Size: | 11” x 5M |
| Working pressure: | 5,000 psi |
| Bottom connection: | 5,000 psi |
| Top connection: | 5,000 psi |
| KILL LINE VALVES | NO |
| Quantity: | 0 |
| Make/type: | |
| Size: | 2-1/16 IN |
| Working pressure: | 5,000 PSI |
| Hydraulic / manual / non-return: | MANUAL |
| BOP CONTROL SYSTEM | |
| Accumulator Unit | |
| Make/model: | Cameron “Bison” |
| Location: | LOWER DOGHOUSE SKID |
| Fluid reservoir capacity: | 160 US GALLONS |
| Total accumulator capacity (with out prior recharge): | 160 US GALLONS |
| System working pressure: | 3,000 PSI |
| Total useful accumulator volume equals all preventer opening and closing volumes: | 160/YES |
| Accumulator Hydraulic Pumps | |
| Electric Driven: | |
| Quantity: | 1 - TRIPLEX |
| Make/model: | BEAR EQUIPMENT/BX10 |
| Each driven by motor of power: | 20HP |
| At operating pressure: | 3,000 PSI |
| Air Driven: | |
| Quantity: | 2 |
| Make/model: | SPEED FLOW/60:1 |
| Flow rate of each pump: | 8 GPM |
| At operating pressure: | 3,000 PSI |
| Primary Control Panel | |
| Control panel make/model: | Cameron – 5 Station |
| Location: | DOG HOUSE SKID |
| Panel controls for the following functions: | |
| Annular BOP: | YES |
| Ram BOP's: | YES |
| Choke line valve: | YES |
| System pressure regulator: | YES |
| Pressure regulator for annular: | YES |
| Quantity of pressure gauges: | 3 |
| Remote Control Panel | YES – 5 Station |
| Location: | not installed |
| CHOKE MANIFOLD | |
| Nominal size: | 2" & 4" |
| Minimum ID: | 2 1/16” |
| Maximum WP: | 5,000 PSI |
| Quantity of fixed chokes: | 2 |
| Make/model: | VALVE WORKS USA |
| Size (ID): | 3/4" ORIFICE 1 1/2" OD |
| Quantity of adjustable chokes: | 2 |
| Make/model: | SWECO |
| Size (ID): | 2-1/16 IN |
| Power choke remote control panel: | NO |
| Make/model: | N/A |
| Size (ID): | N/A |
| CHOKE LINE (BOP to MANIFOLD) | YES |
| Quantity: | 1 |
| Make/type: | Midwest Hose/non-metal braided |
| ID: | 3" |
| Working pressure: | 5,000 PSI |
| H2S Service: | NO |
| FLEXIBLE BOP CONTROL HOSES | YES |
| Quantity: | 10 |
| Make/type: | SYNFLEX TYPE "B" |
| ID: | 1" |
| Working pressure: | 5,000 PSI |
| Fire resistant: | YES |

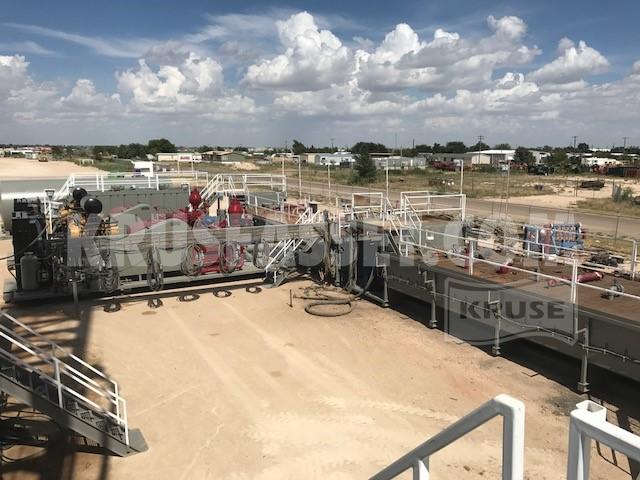

| MUD SYSTEM | |

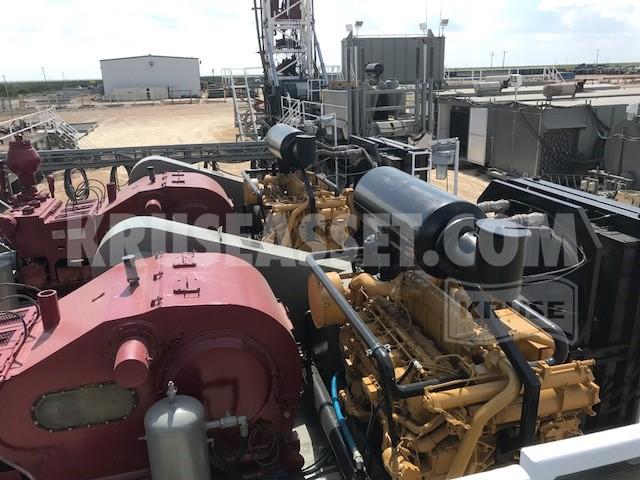

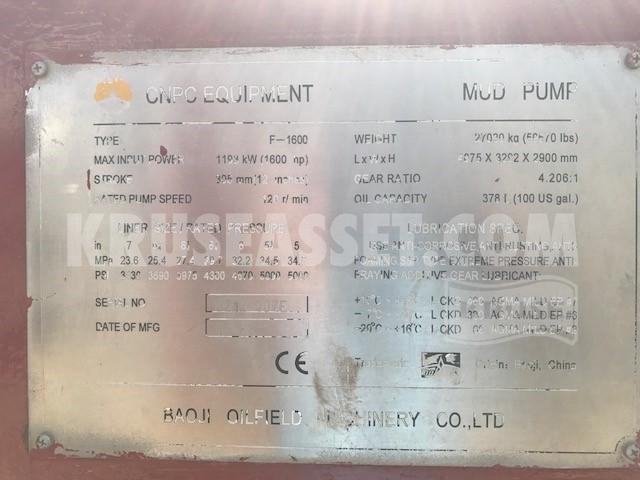

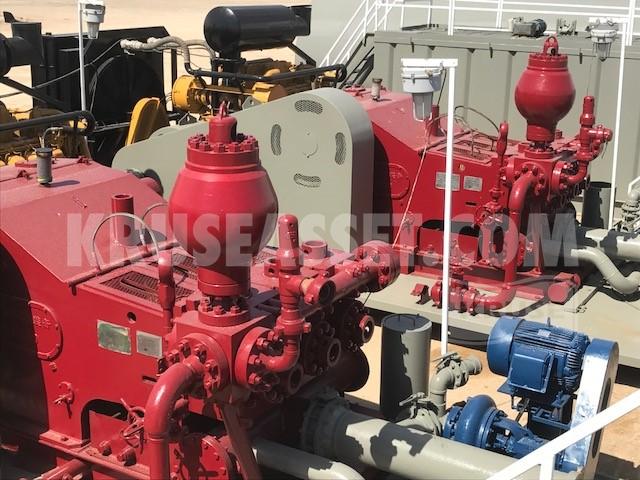

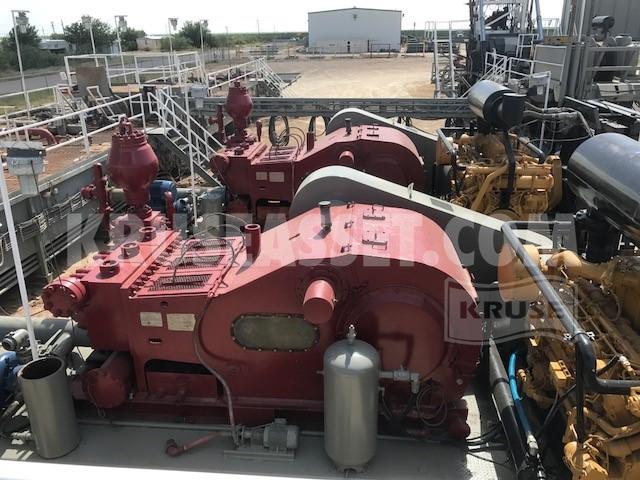

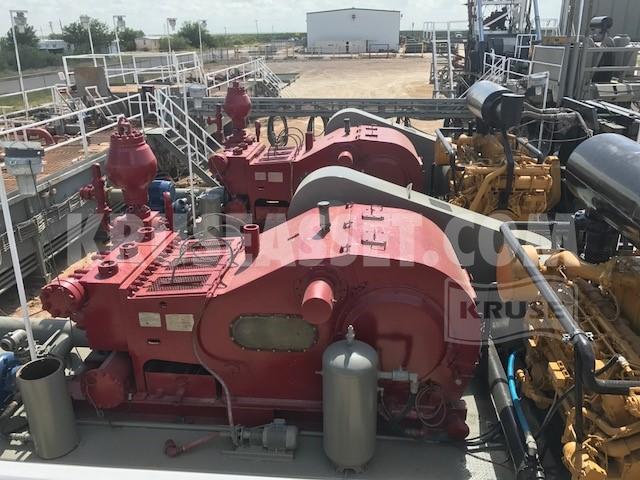

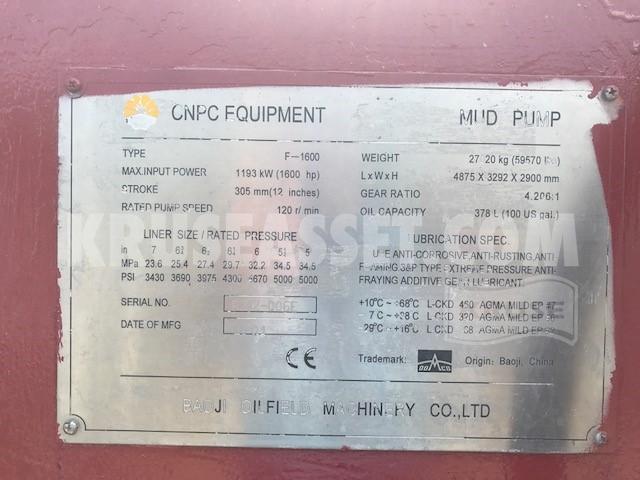

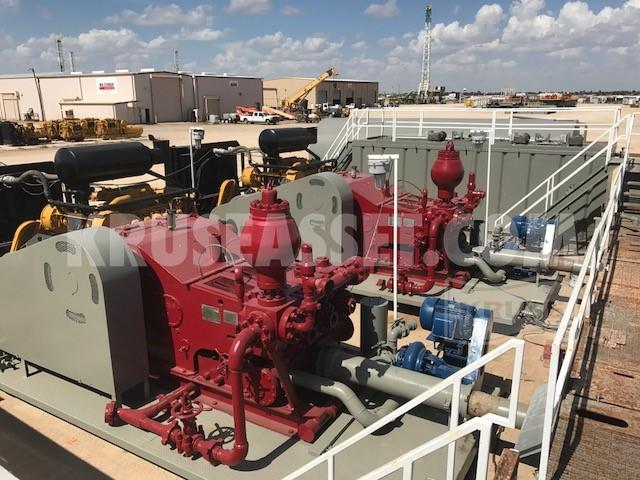

| MUD PUMPS | YES |
| Quantity: | 2 |
| Make: | BOMCO |
| Model: | F-1600 |
| Horsepower: | 1600 |
| Type (triplex / duplex): | TRIPLEX |

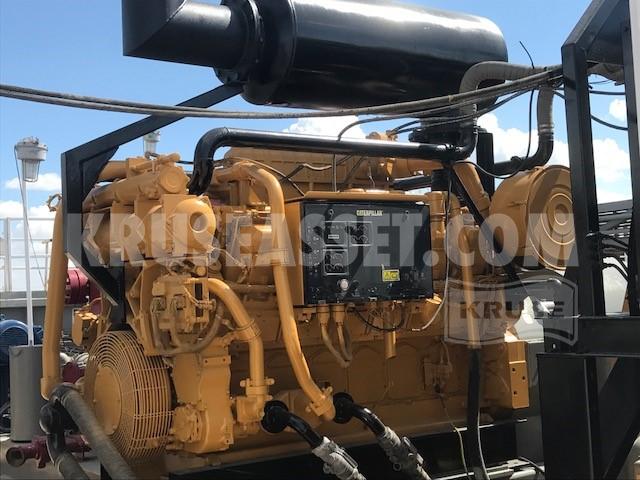

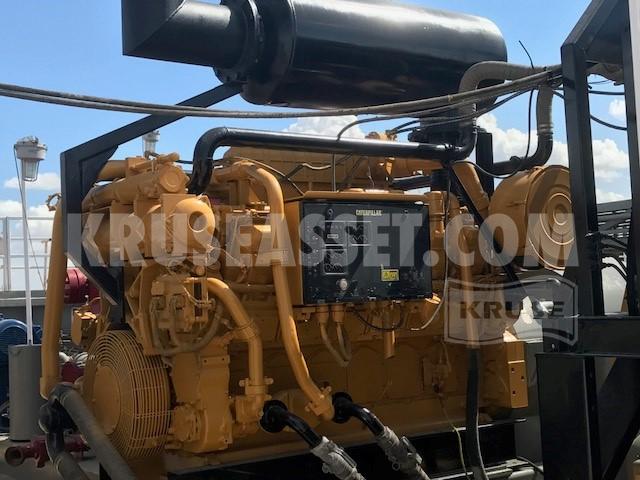

| Mud pumps drive motors / engines: | CATERPILLAR 3512C |
| Motor type: | Variable Speed - Diesel |
| Continuous power rating per engine: | 1200 RPM FOR 3512 |
| Fluid end type: | BOMCO (Interchangeable w/Emsco F- 1600) |
| Maximum working pressure: | 5,000 PSI |
| Test pressure: | 5,000 PSI |
| Pump stroke counter type: | CUSTOMER TO FURNISH |
| Supercharging pump type: | YES |
| Driven by motor of power: | PINION SHAFT |
| Discharge/suction line ID: | 3 1/2" X ID |
| Mud pump pulsation dampener type: | AS SUPPLIED BY BOMCO |
| Reset relief valve: | 3" |
| Torque Converters | |
| Quantity: | 2 (1 per mud pump) |
| Make/type: | U.S. Oilworks / C300-100 |

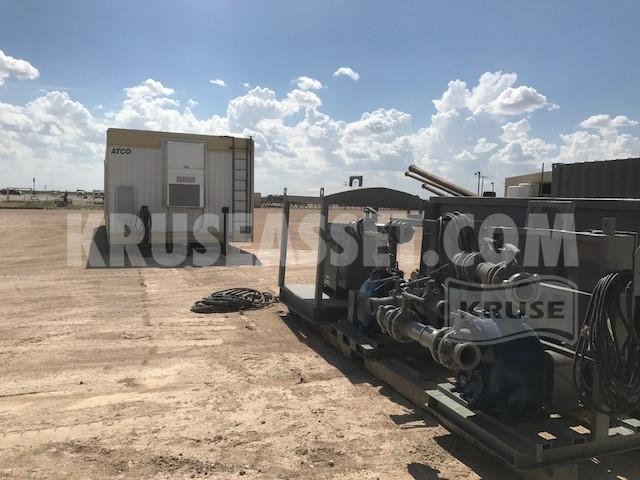

| TRANSFER PUMPS / MIXING PUMPS | YES |
| Mixing Pumps | |
| Quantity: | 4 |
| Make/model: | 5" X 6" W/50 H.P. ELECTRIC MOTORS-MISSION MAGNUM |
| Output capacity: | 11" IMPELLER 80 TO 110 GALLONS PER MINUTE |
| Drive motor type: | ELECTRIC 50HP |
| Power output: | N/A |
| CHARGING PUMPS | YES |
| Quantity: | 2 (1 per pump) |
| Make/model: | 6”x8” w/ 75 HP ELECTRIC MOTORS- MISSION MAGNUM |
| Output capacity: | 14" IMPELLER-80 TO 110 GALLONS PER MINUTE |
| STANDPIPE MANIFOLD | YES |
| Quantity of standpipes: | 1 (MUD) |
| Standpipe/ID: | 4”/ 3” ID |
| Kill line outlet: | YES |
| fill-up like outlet: | YES |
| Bleed-off line outlet: | YES |
| Outlet for sensor | YES |
| ROTARY HOSE | YES |
| Quantity | 2 |
| Make/type: | Midwest Hose |
| ID x Length: | 4" ID X 43' L. |
| Working pressure: | 5,000 PSI |
| Snubbing lines: | YES |
| JUMPER HOSE | |
| Quantity: | 2 |
| Make/type: | Midwest Hose |
| ID x Length: | 4" x LENGTH DEPENDS ON PUMP RIG UP |
| Working pressure: | 5,000 PSI |
| Snubbing lines: | YES |

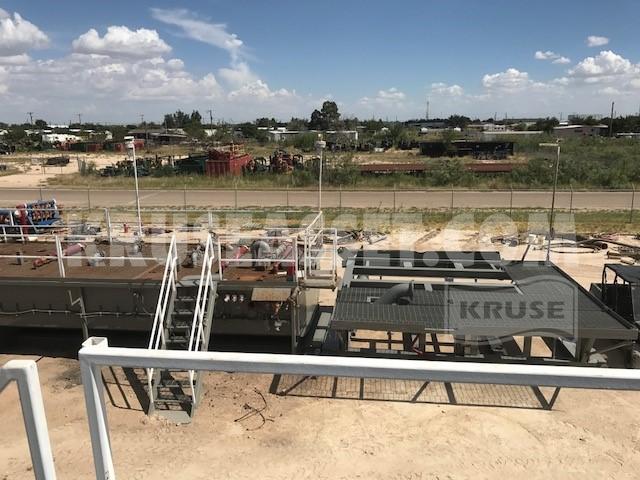

| LOW PRESSURE MUD SYSTEMS | 2-12'W X 5'H X 40' L W/10' PORCH ON END FOR PUMPS V-CRIMPED; DESIGNED TO ELIMINATE SURFACE TRIP HAZARDS ON WALKING SURFACE |
| MUD TANKS (CURVED BOTTOMS) | YES |
| Quantity: | 2 |
| Total capacity (usable): | ~700 bbls |
| Usable capacity No. 1: | ~350 |
| Type (active / reserve): | ACTIVE |
| Height: | 5 ft. |
| Mixer: | YES |
| High Pressure Mud guns: | NO |
| Usable capacity No. 2: | ~350 |
| Type (active / reserve): | ACTIVE |
| Height: | 5 |
| Mixer: | YES |
| High Pressure Mud guns: | YES |
| SHALE SHAKER | |
| Quantity: | 1 |
| Make/model: | VORTEX FLUID SYSTEM |
| Type: | ORBITAL 3000 DUAL SHAKER |
| Nominal flow rate (total): | 1000 gal. |
| MUD AGITATORS | YES |
| Quantity: | 5 |
| Make/model: | Nord / SK9042.1VF – 210TC or equivalent |
| Driven by motor of power: | 10 HP |
| Located in tanks: | YES |
| Impeller Blades, Type | YES |
| MUD HOPPER | YES |
| Quantity: | 1 |
| Make/model: | Oilworks mixing hopper |
| Feed pump make/model: | 5" X 6" MISSION MAGNUM |
| Type/size: | 11" IMPELLER |
| Capacity: | 450 |
| Drive motor hp: | 50 |
| Is feed pump dedicated to mud hopper(s): | YES |
| DESANDER | YES – US Oilworks |
| Cone No. & size | 2 - 10" |
| DESILTER | YES – US Oilworks |
| Cone No. & size | 10 - 4” cone |
| TOP/BOTTOM DOGHOUSE | MD COWAN FABRICATED; HYDRAULICALLY RAISED: TOP/BOTTOM DOG HOUSE SKID |
| WITH CHANGE LOCKERS AND HEATERS; DRESSED FOR DRILLING OPERATIONS |
|
| PIPE RACKS | 3 SETS (6 EACH) |
| JUNK BOX | 1 EACH |
| WATER TANK | MDC FABRICATED |
| Rectangular V-crimp 8’ Wide | 400 bbl. |
| Centrifugal Pumps | 2 |
| Type/Size: | MISSION MAGNUM 2" X 3" CENTRIF. PUMP Or equivalent |
| Drive Motor HP: | 20 HP MOTORS |
| BRAKE COOLING/LUBESTER SKID | |
| Additional skid containing a brake cooling unit and lubrication bulk handling equipment. | MDC Fabricated Skid |
| Brake cooling unit | Rig Tech RTBSS-101 |
| Bulk Handling Lubester | 5 EA BULK LUBE TOTES; 350 GAL. EA; STAINLESS STEEL TANKS INCLUDED FOR ENGINE OIL, HYDRAULIC OIL, GEAR OIL, ENGINE COOLANT, AND WASTE OIL |
| Tote | |
| Make: | Custom Metalcraft, Inc. |
| Model: | TranStore 515829 |
| Hose Reel | (4 total) 50 ft; 1/2” hose |
| Make: | Lincoln |
| Model: | 94300 series “A” |
| Pump for Oil Totes | Pneumatic |
| Make: | Lincoln |
| Model: | 84934 |
| Pump for Coolant | Pneumatic |
| Make: | Lincoln |
| Model: | 85627 series “B” |
Email for more info
